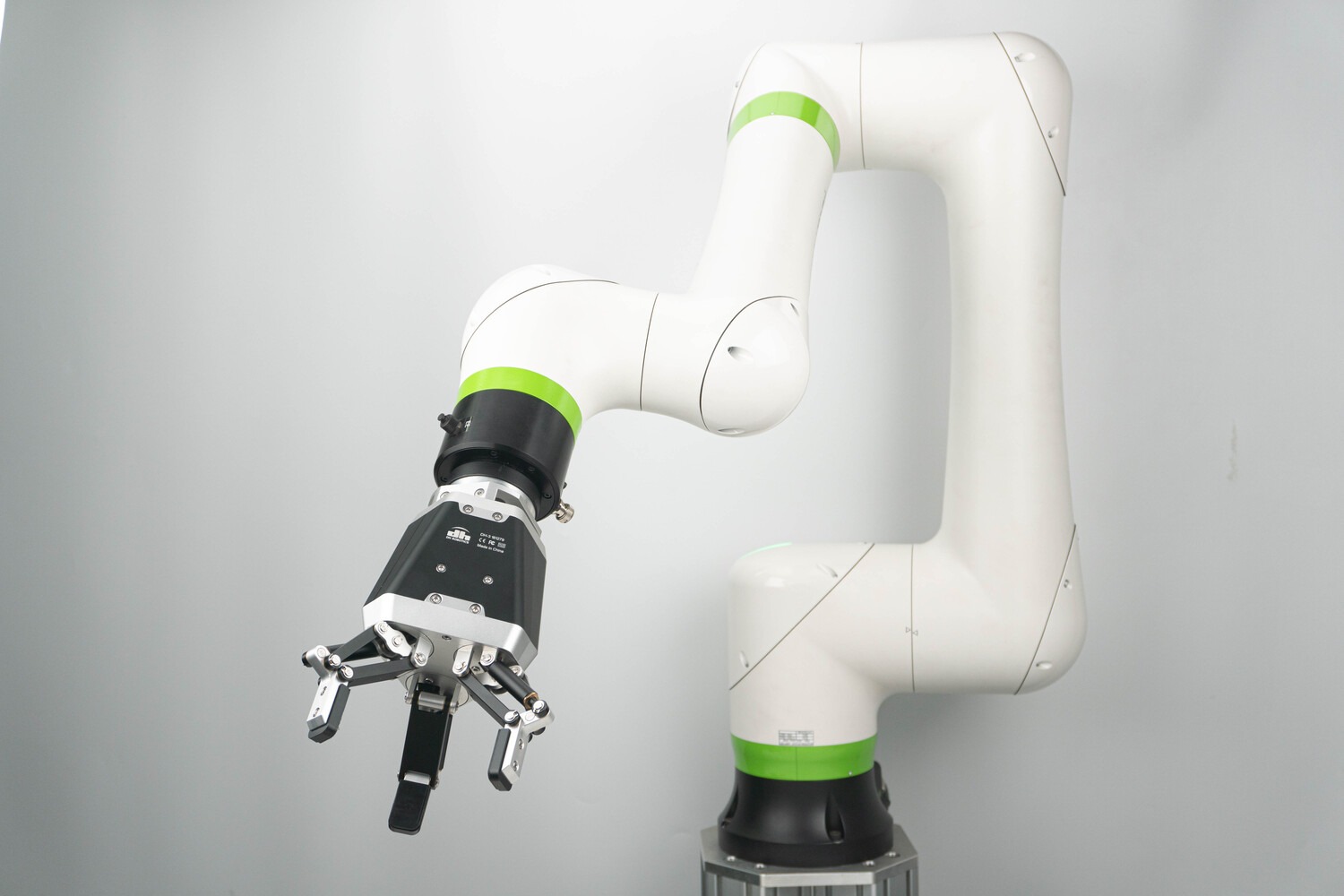

Electric Adaptive Gripper
Product Features:
More Features:
Cooperate with collaborative robot or industrial robot to complete material handling, loading and unloading, assembly, testing, sorting and other tasks in auto parts, automation equipment, new energy and other industries.
| Gripping force (per jaw) | 10~65 N | |
|---|---|---|
| Stroke | 106 mm(parallel) 122 mm(centric) | |
| Recommended workpiece weight | 1.8 kg | |
| Opening/Closing time | 0.7 s/0.7 s | |
| Repeat accuracy (position) | ± 0.03 mm | |
| Noise emission | < 60 dB | |
| Weight | 1.68 kg | |
| Driving method | Screw nut + gear drive + linkage mechanism | |
| Size | 213.5 mm x 170 mm x 118 mm | |
| Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT | |
| Rated voltage | 24 V DC ± 10% | |
| Rated current | 0.5 A | |
| Peak current | 1 A | |
| Rated Power | 12 W | |
| IP class | IP 40 | |
| Recommended environment | 0~40°C, under 85% RH | |
| Certification | CE,FCC,RoHS | |
