CGC-80-10

CGC 80

CGC-8--80

CGC-80-10

Category CG Series

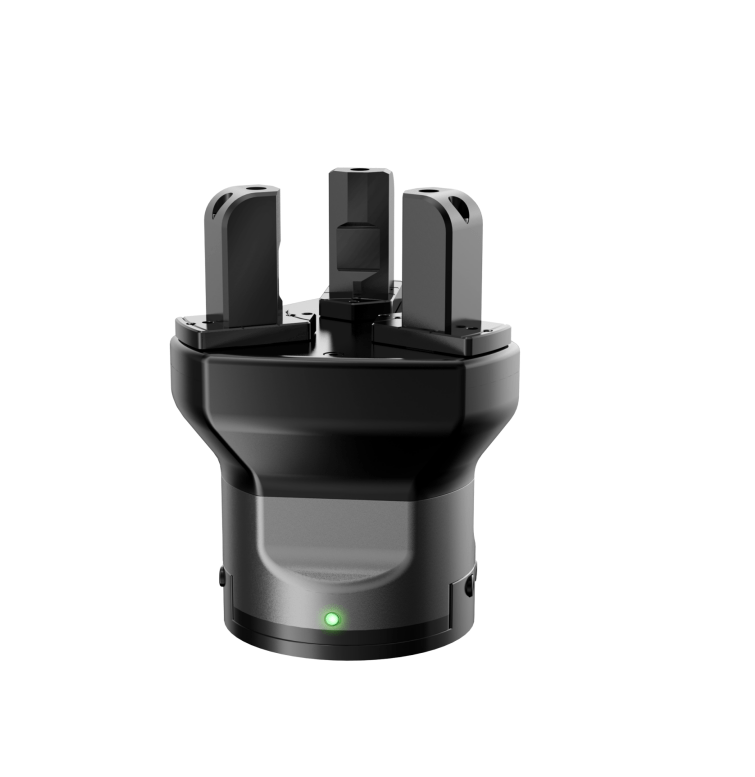

Electric Collaborative Centric Gripper

Product Features:

High Performance: Realize high-precision centering and grasping, the process structure meets the requirements of high rigidity, and the energy density exceeds that of similar products.
Long Lifetime: Continuous and stable work above 10 millions times without maintenance.
Overload Protection: The high-performance servo motor can provide instantaneous overload protection

More Features:

Integrated design
Adjustable parameters
Self-locking
Intelligent feedback
Replaceable Fingertip
IP67
CE certification
FCC certification
RoHS certification

Application:

Accurate and stable grasping of cylindrical workpieces in the fields of auto parts, automation equipment, precision machining and assembly, etc.

Parameters

Gripping force (per jaw)	20~80 N
Single jaw	10 mm
Recommended workpiece weight	1.5 kg
Opening/Closing time	0.5 s/0.5 s
Repeat accuracy (position)	± 0.03 mm
Noise emission	＜ 50 dB
Weight	1.5 kg
Driving method	Precise planetary gear reducer + Rack and pinion
Size	141 mm x 103 mm x 75 mm
Communication interface	Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Rated voltage	24 V DC ± 10%
Rated current	0.5 A
Peak current	1.2 A
Rated Power	12 W
IP class	IP 67
Recommended environment	0~40°C, under 85% RH
Certification	CE，FCC，RoHS
