Electric Collaborative Parallel Gripper
Product Features:

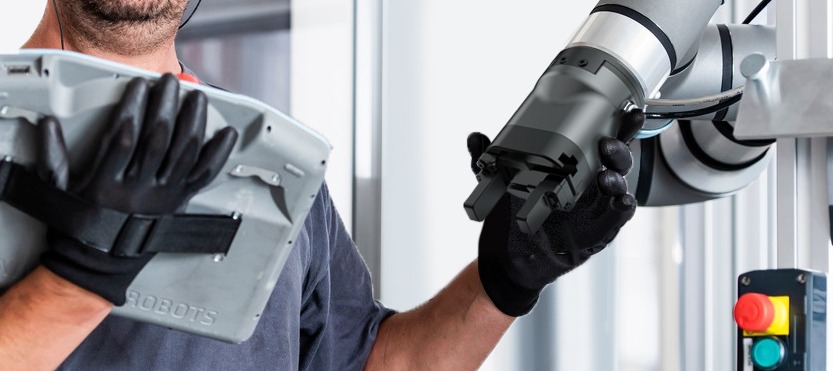

With collaborative robots, it can complete a series of complex processes including gripping, handling, and assembly in scenarios such as medical automation, 3C electronics, new energy, and new robot retail.
| Gripping force (per jaw) | 40~140 N | |
|---|---|---|
| Stroke | 50 mm | |
| Recommended workpiece weight | 3 kg | |
| Opening/Closing time | 0.75 s | |
| Repeat accuracy (position) | ± 0.03 mm | |
| Noise emission | ＜ 50 dB | |
| Weight | 1 kg | |
| Driving method | Precise planetary gears + Rack and pinion | |
| Size | 138.5 mm x 75 mm x 75 mm | |
| Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT | |
| Rated voltage | 24 V DC ± 10% | |
| Rated current | 0.4 A | |
| Peak current | 1.2 A | |
| Rated Power | 9.6 W | |
| IP class | IP 67 | |
| Recommended environment | 0~40°C, under 85% RH | |
| Certification | CE，FCC，RoHS | |
