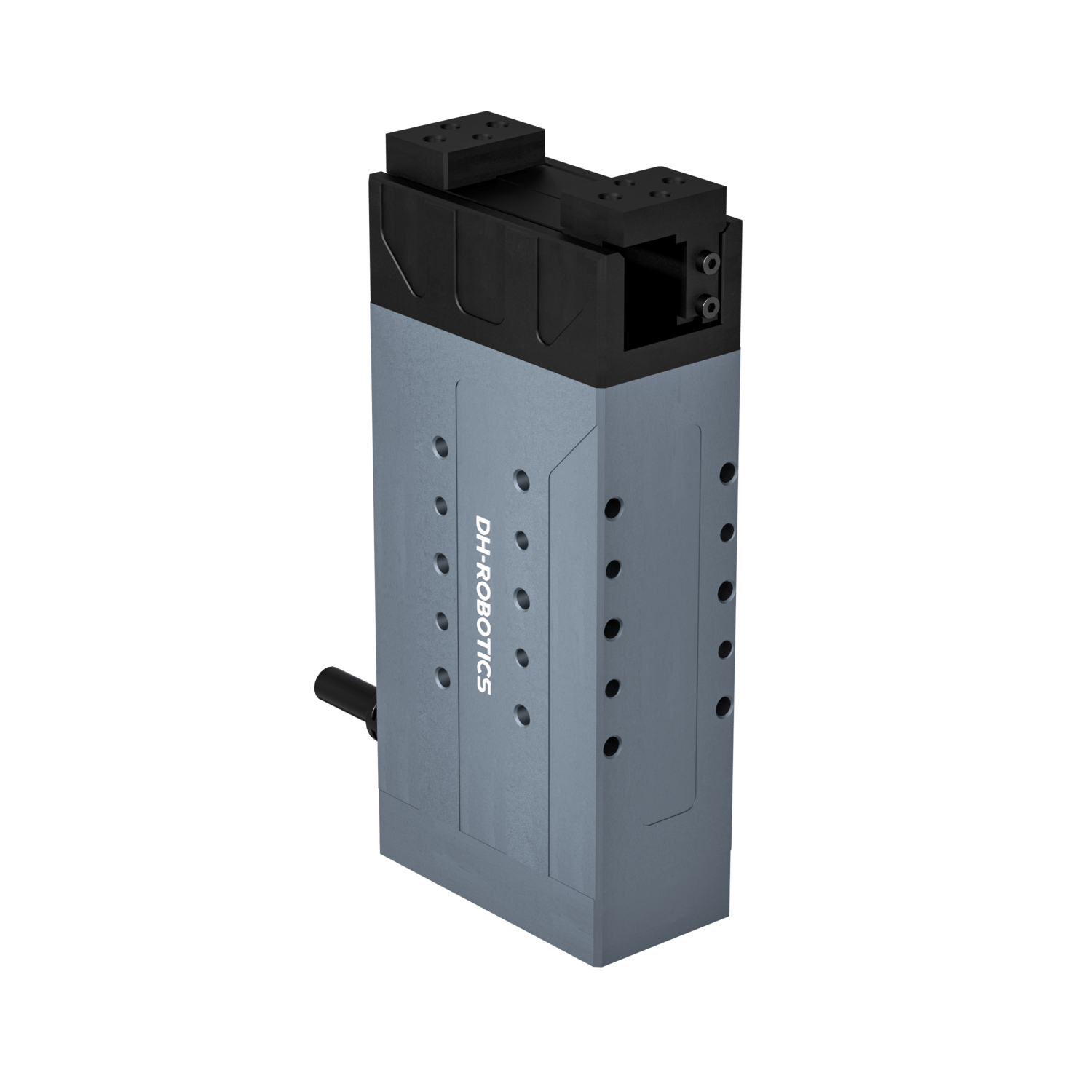

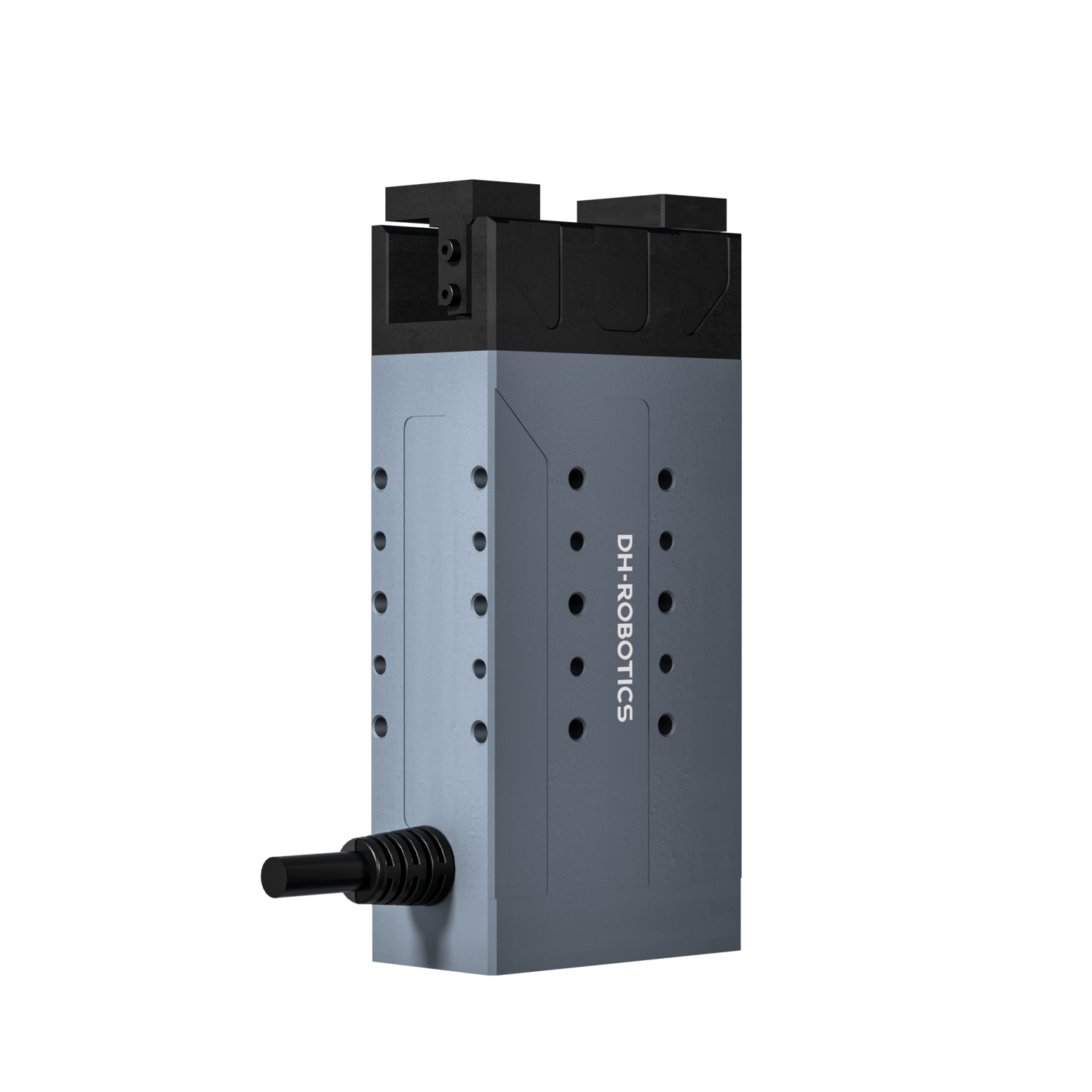

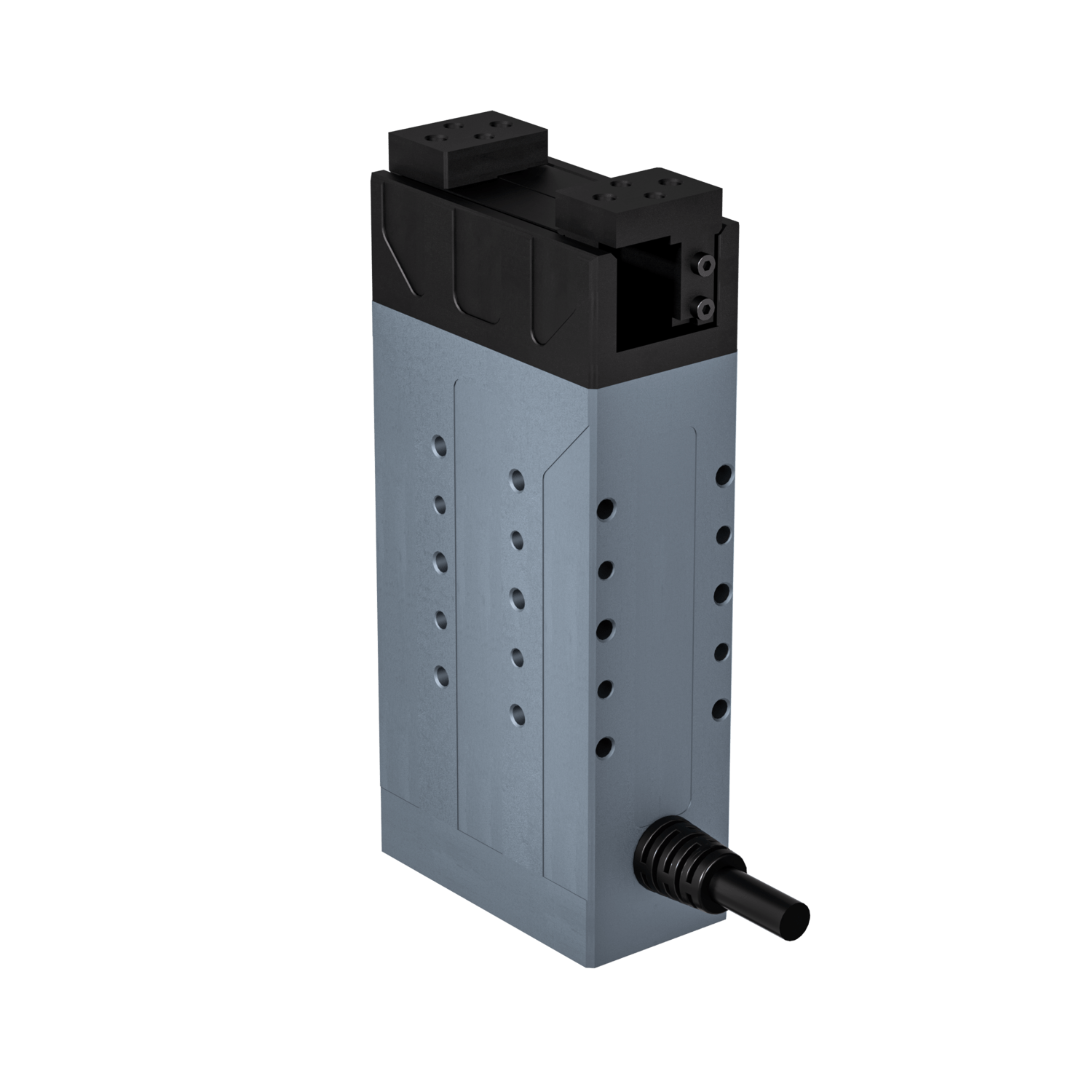

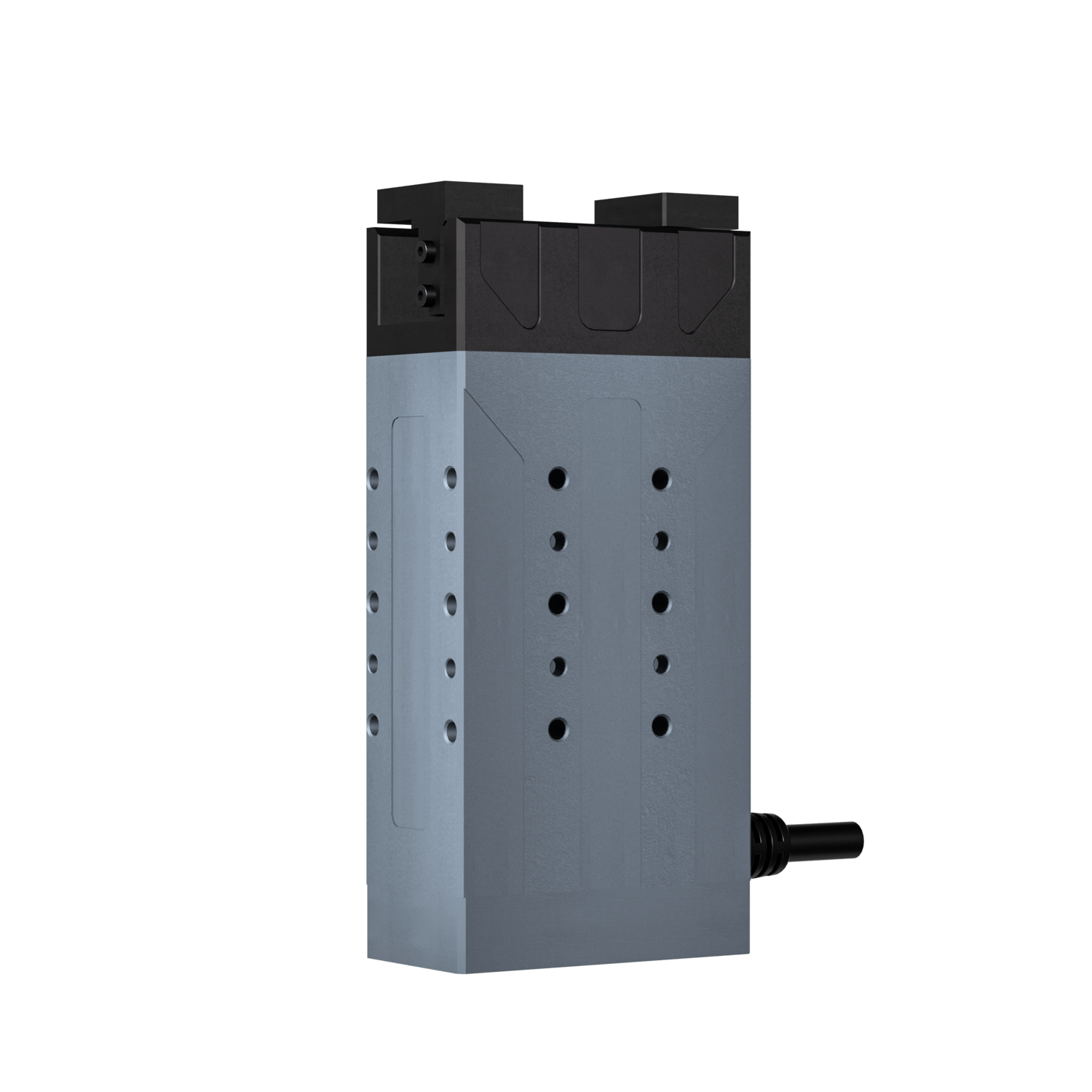

Slim-type Electric Parallel Gripper
Product Features:
For scenarios requiring force control or flexibility, such as assembly, sorting and loading and unloading in semiconductor, 3C electronics, medical automation and other industries.
| Gripping force (per jaw) | 30~50 N | |
|---|---|---|
| Stroke | 26 mm | |
| Recommended workpiece weight | 2 kg | |
| Opening/Closing time | 0.5 s/0.5 s | |
| Repeat accuracy (position) | ± 0.02 mm | |
| Noise emission | ＜ 50 dB | |
| Weight | 0.55 kg | |
| Driving method | Precise planetary gears + Rack and pinion | |
| Size | 125 mm x 57 mm x 30 mm | |
| Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT | |
| Rated voltage | 24 V DC ± 10% | |
| Rated current | 0.3 A | |
| Peak current | 1.2 A | |
| Rated Power | 7.2W | |
| IP class | IP 40 | |
| Recommended environment | 0~40°C, under 85% RH | |
| Certification | CE，FCC，RoHS | |
