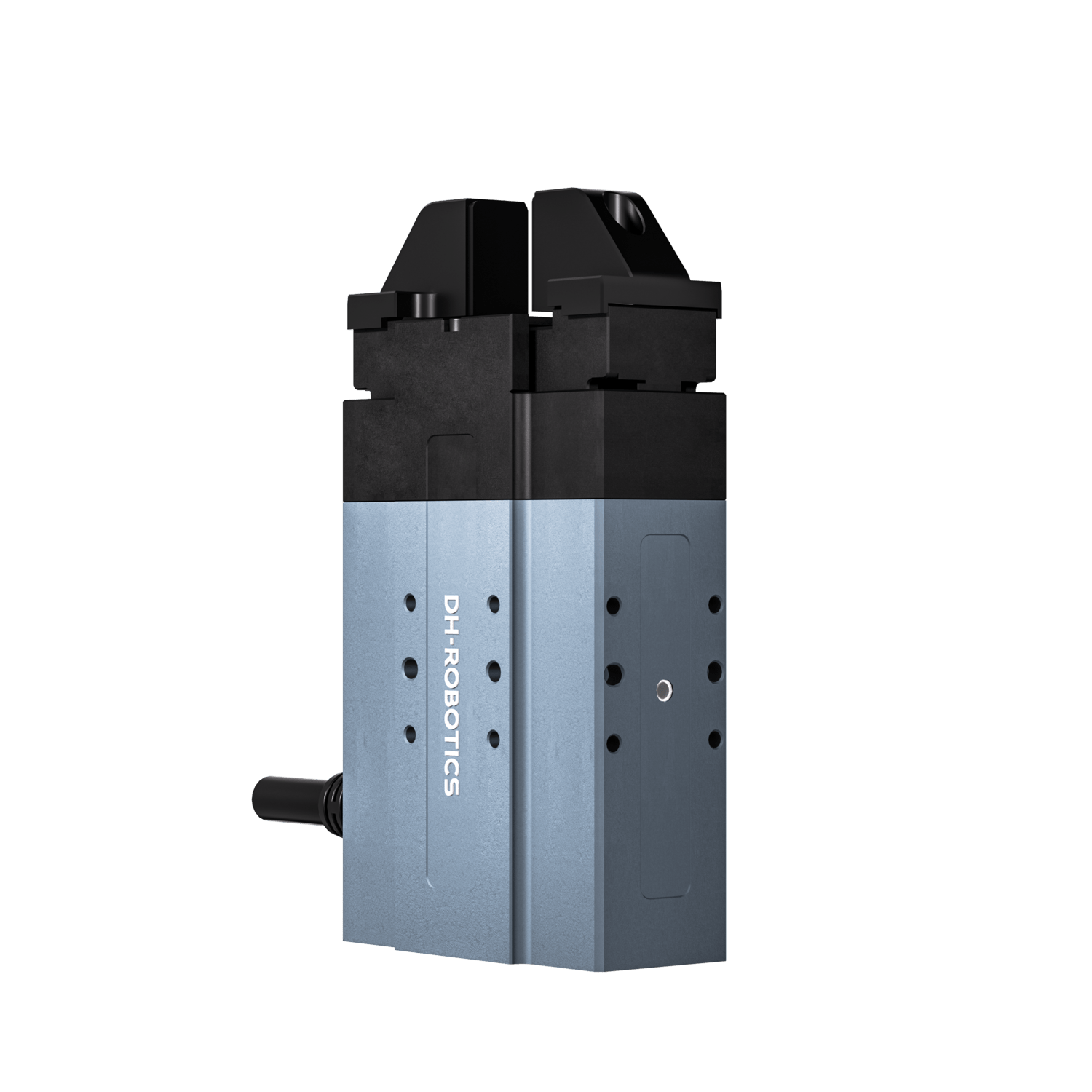

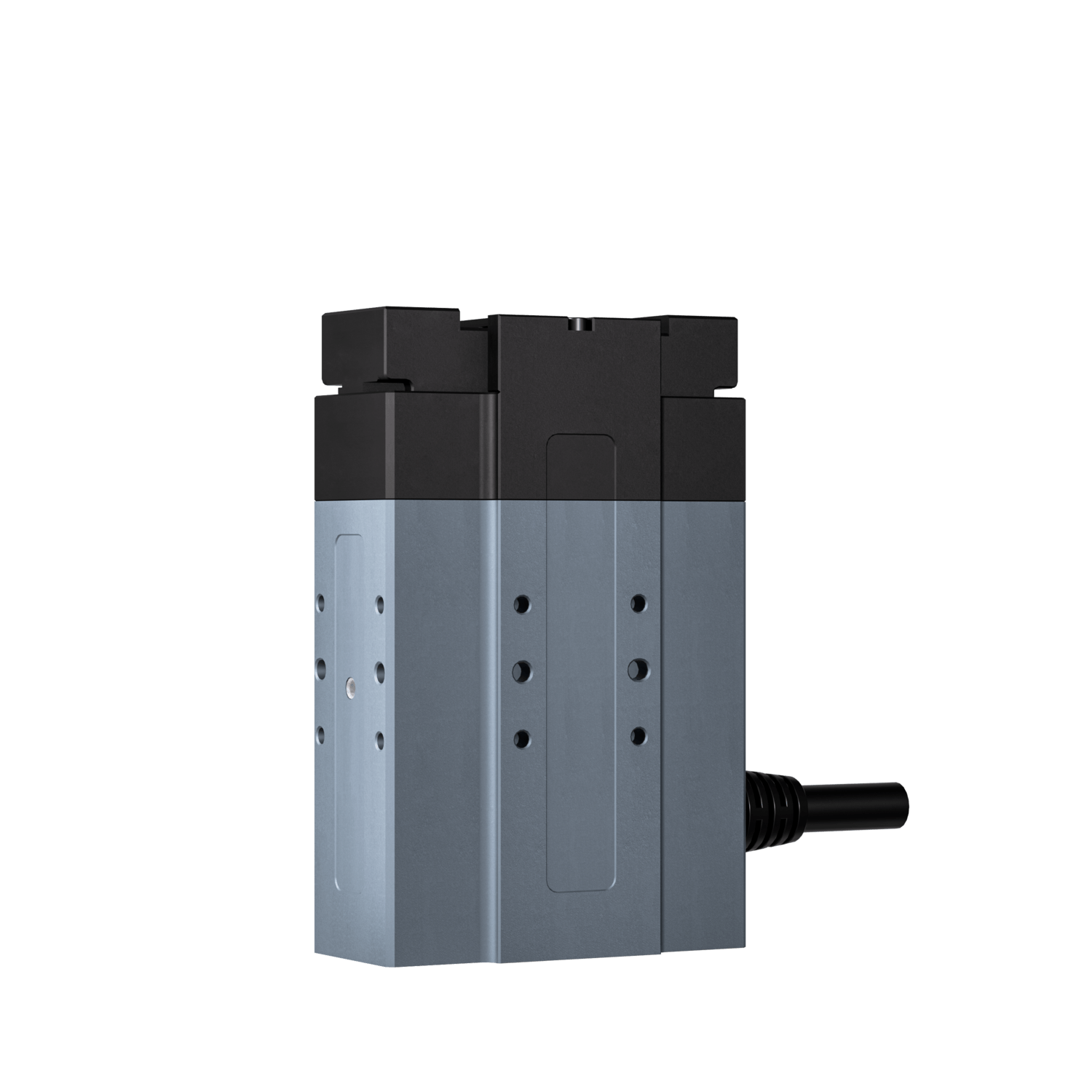

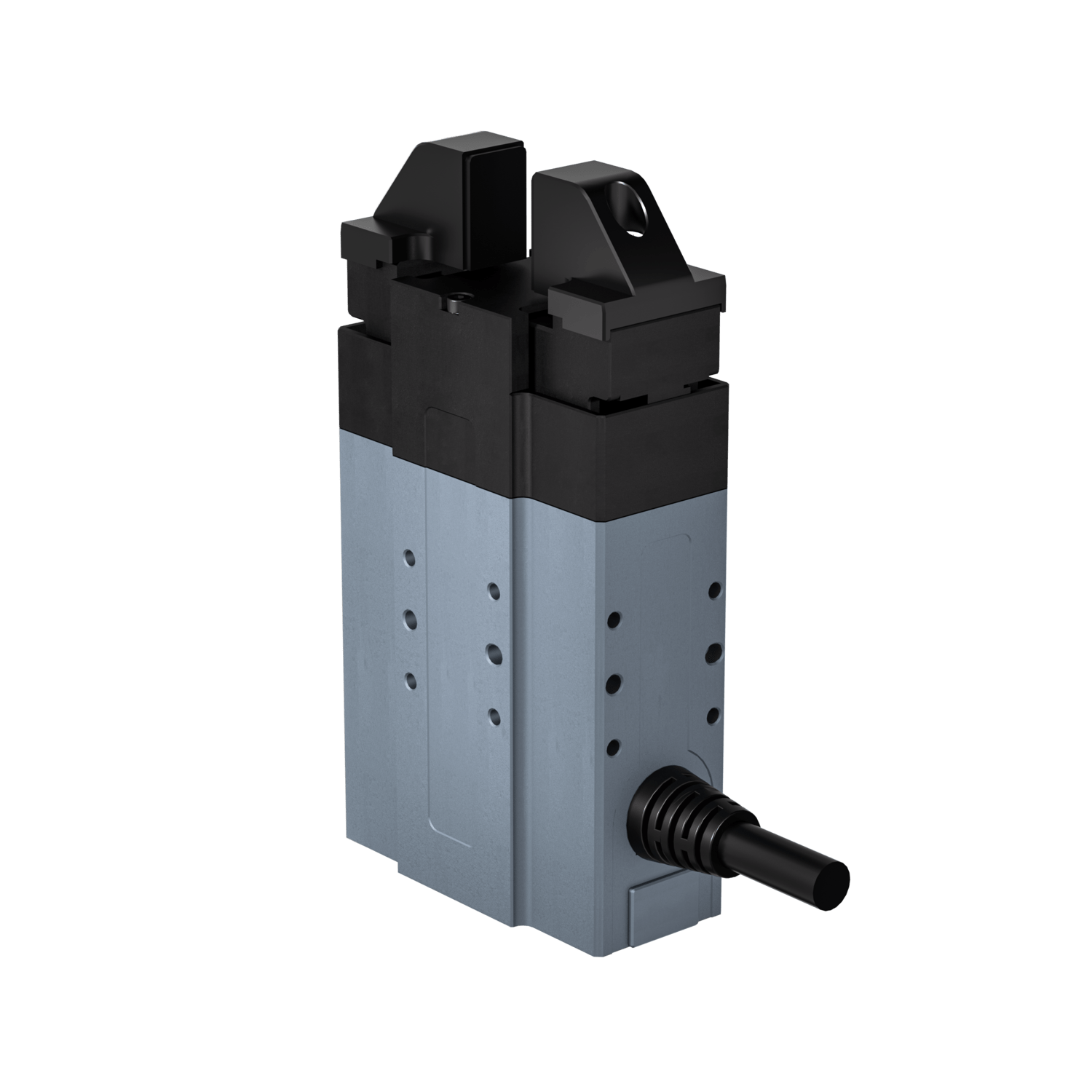

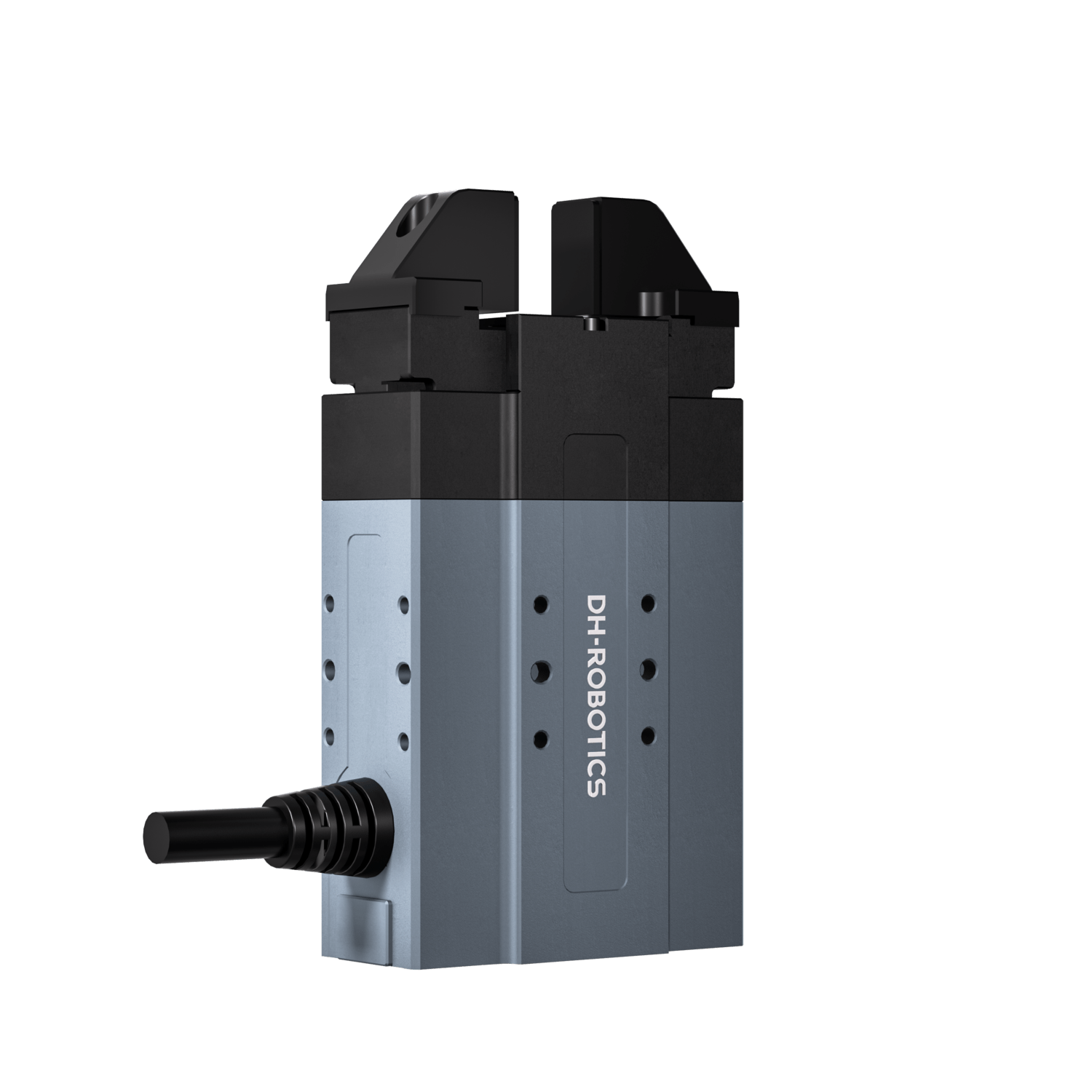

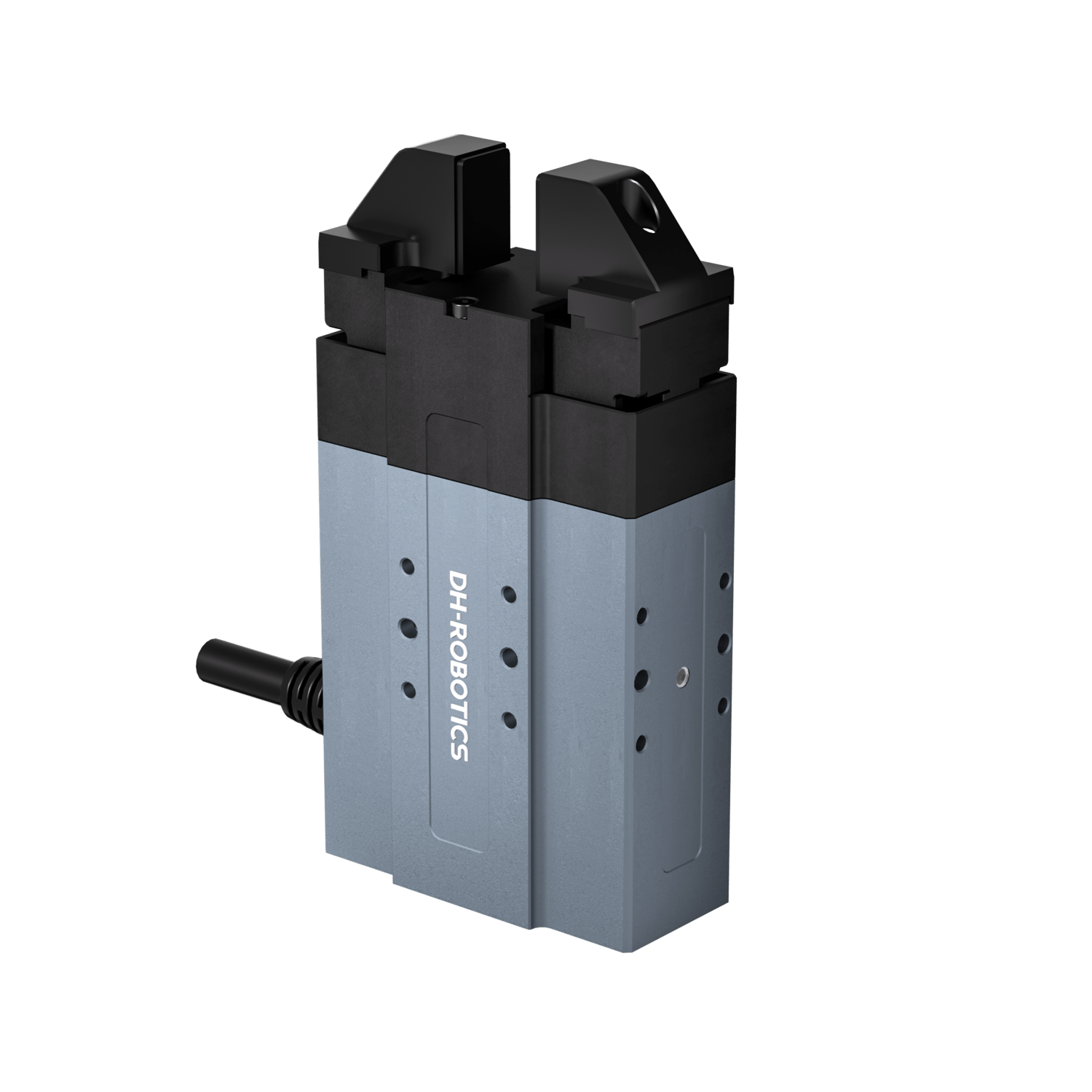

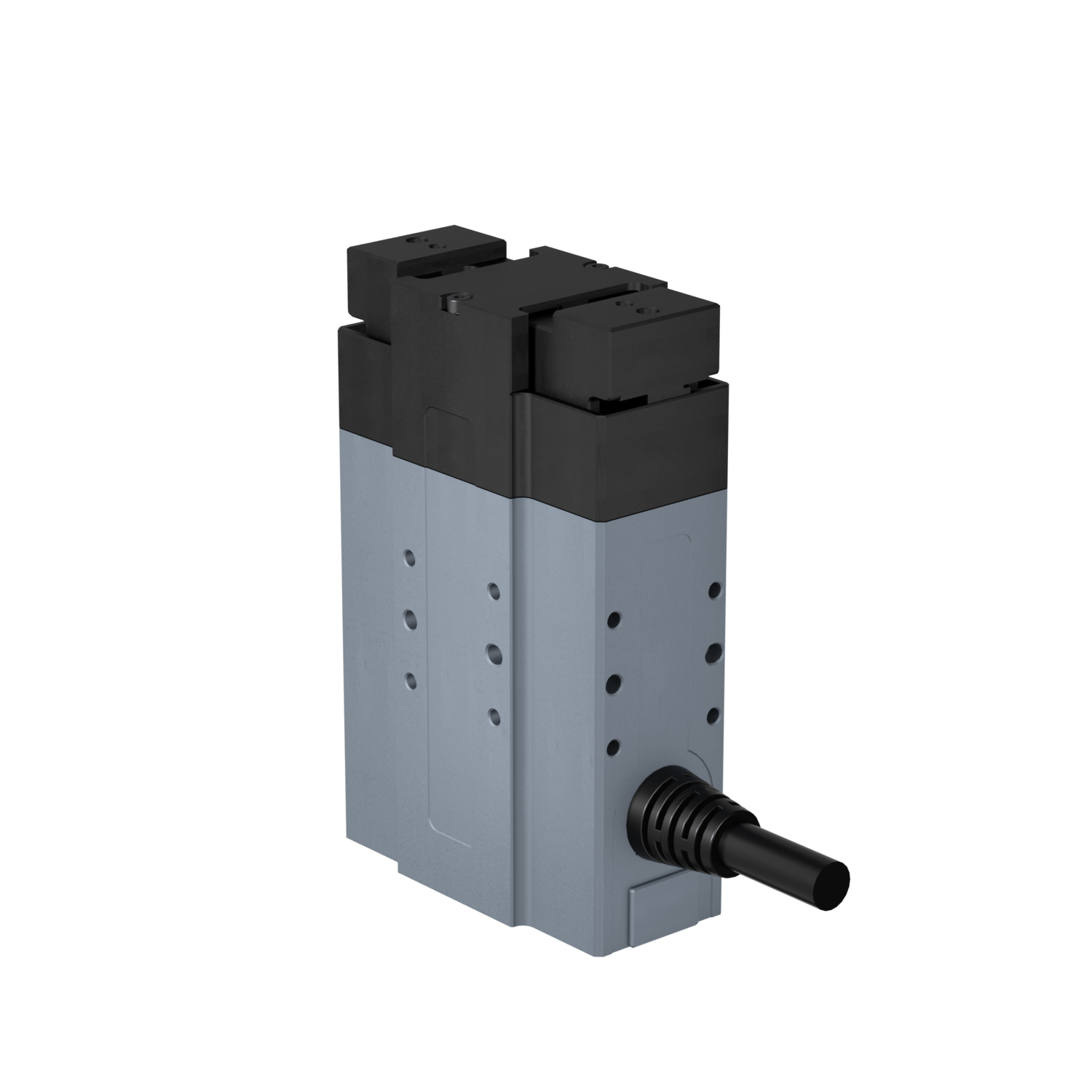

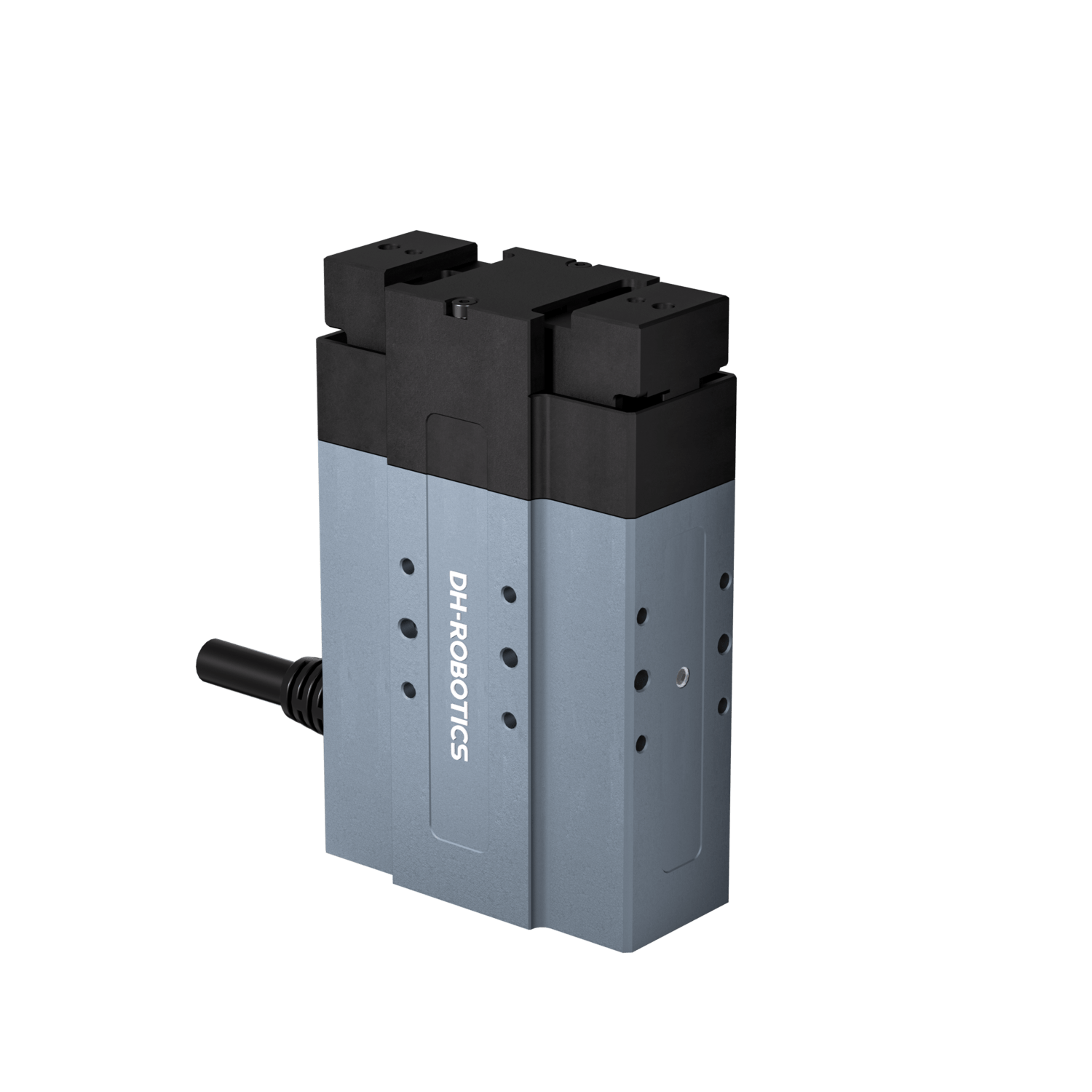

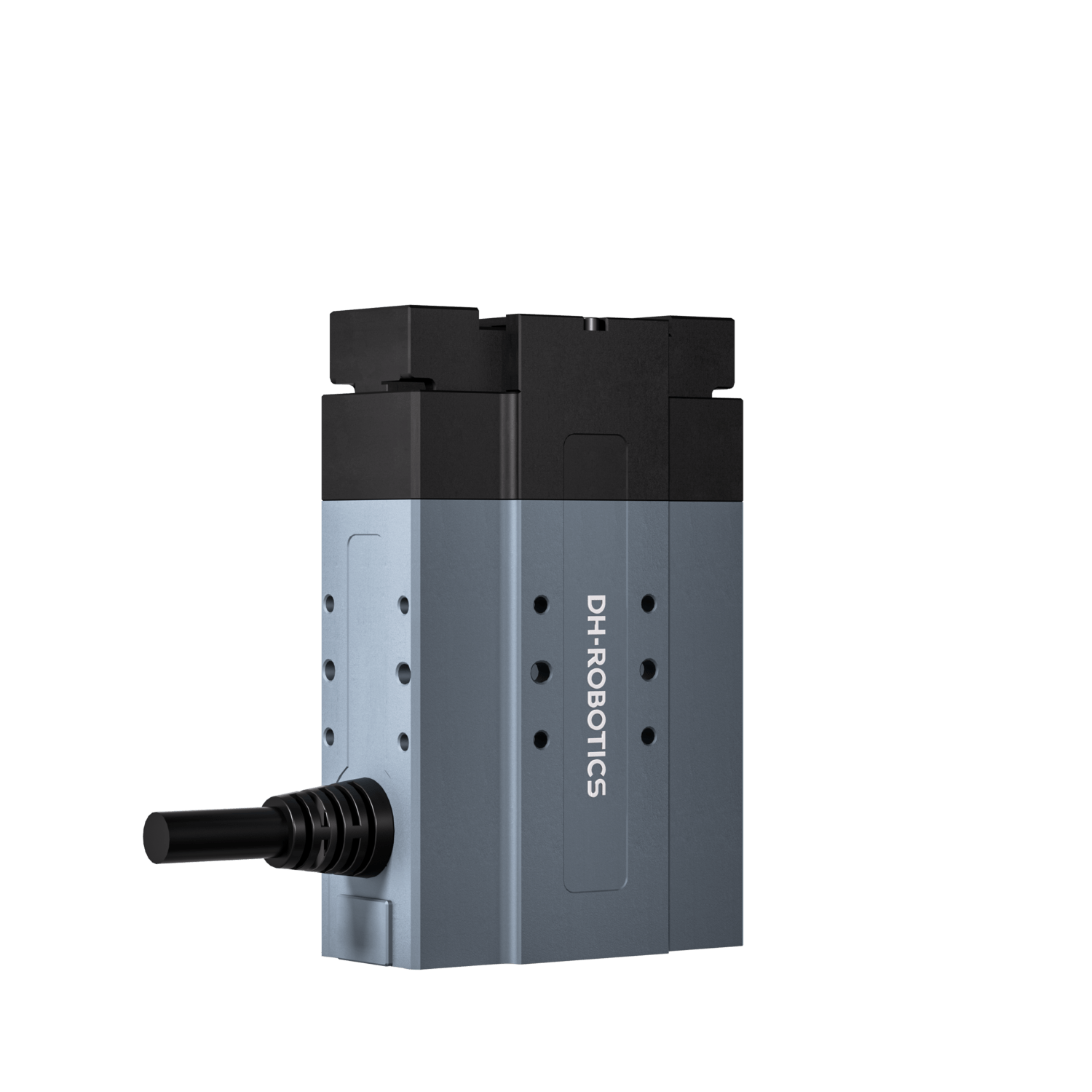

PGE-8-14

PGE-8-14

Category PGE Series

Slim-type Electric Parallel Gripper

Product Features:

Small size | Flexible installation:The thinnest size is 18 mm with compact structure, supports at least five flexible installation methods to meet the needs of clamping tasks & saves design space.
High Working Speed:The fastest opening and closing time can reach 0.15 s / 0.15 s, which can meet the high-speed and stable clamping requirements of the production line.
Precise Force Control:With special driver design and driving algorithm compensation, the gripping force is continuously adjustable, and the force repeatability could reach 0.1 N

More Features

Integrated design
Adjustable parameters
Intelligent feedback
Replaceable Fingertip
IP40
-30℃ low temperature operation

Application:

For scenarios requiring force control or flexibility, such as assembly, sorting and loading and unloading in semiconductor, 3C electronics, medical automation and other industries.

Parameters

Gripping force (per jaw)	2~8 N
Stroke	14 mm
Recommended workpiece weight	0.1 kg
Opening/Closing time	0.3 s/0.3 s
Repeat accuracy (position)	± 0.02 mm
Noise emission	＜ 50 dB
Weight	0.4 kg
Driving method	Rack and pinion + Linear guide
Size	97 mm x 62 mm x 31 mm
Communication interface	Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Rated voltage	24 V DC ± 10%
Rated current	0.4 A
Peak current	0.7 A
Rated Power	9.6W
IP class	IP 40
Recommended environment	0~40°C, under 85% RH
Certification	CE，FCC，RoHS
