JAKA Ai 12

Category JAKA All-In-One

Payload 12 kg | Reach 1327 mm

Product Features:

On the JAKA Ai 12, the best-in-class working radius of 1327mm is matched with a 12kg payload. This makes it perfect for larger, complicated operations such as machine tending, vision picking, polishing, inspection, testing and many others.
Wireless teach and graphic programming make it an ideal companion to any facility in logistics or manufacturing – new tasks may be programmed and performed simply, with agility. Its integrated visual feedback ensures consistency and monitoring across palletizing, packaging, warehousing and any other task that might be required of it.
Mounting and dismounting the JAKA Ai 12 presents no limits. It has full 360-degree mounting capabilities, meaning facility managers may install it on a horizontal surface, a vertical one, upside down, or anything in between. Also there is no need of protective fences anymore. Cobot can easily interact with humans and other cobots.

JAKA Ai 12 Parameters

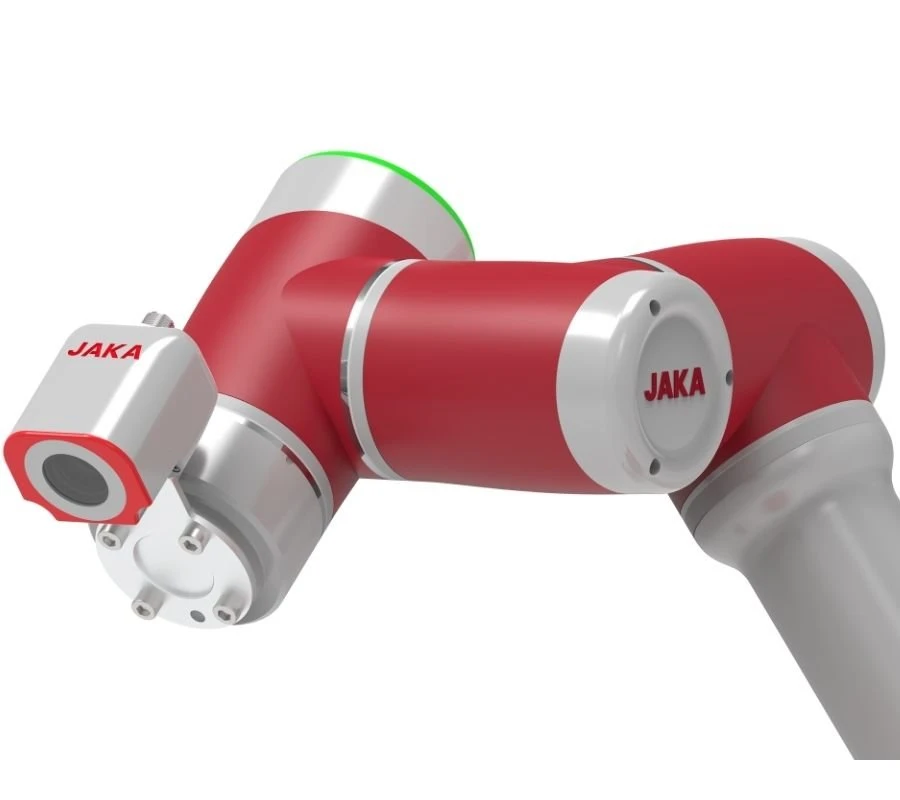

Size	67×57×45 mm (L×W×H)
Communication Interface	Ethernet Interfaces (TCP/IP Protocol)
Trigger Mode	Soft trigger
PX	500 w
Resolution	2592(H) ×1944(V)
FPS	24 FPS mm
Focus	8 mm

Payload	12 kg
Weight (W cable)	41 kg
Working Radius	1327 mm
Repeatability	±0.03mm
Axis	6
Programming	Graphical \| Visual
Teach Pendant	MT(PAD/Mobile)APP
Collaborative operation	In compliance with GB 11291.1-2011
Certifications	CR, CE, 15066
Robot	Workscope	Max Speed
Joint 1	±360°	120°/s
Joint 2	-85°，+265°	120°/s
Joint 3	±175°	120°/s
Joint 4	-85°，+265°	180°/s
Joint 5	±360°	180°/s
Joint 6	±360°	180°/s
Max Speed	/	3 m/s
Rated Power	500 W
Temperature Range	0-50℃
IP Specification	IP54
Tool I/O Power	24V
Tool I/O Size	M8
Base Diameter	188 mm
Installation	At any angle
Material	Aluminum, PC
Tool I/O	Digital input 2/Digital output 2/Analog input 1
Cable Length	6 m
Package Size	875×580×520 (mm) (L×W×H)
