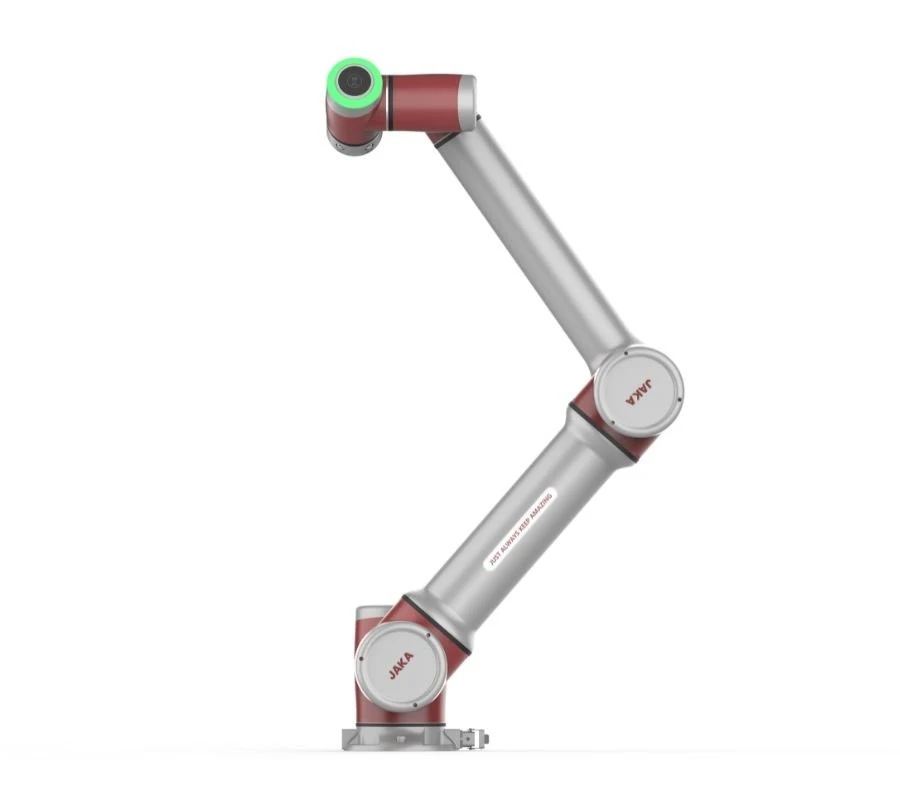

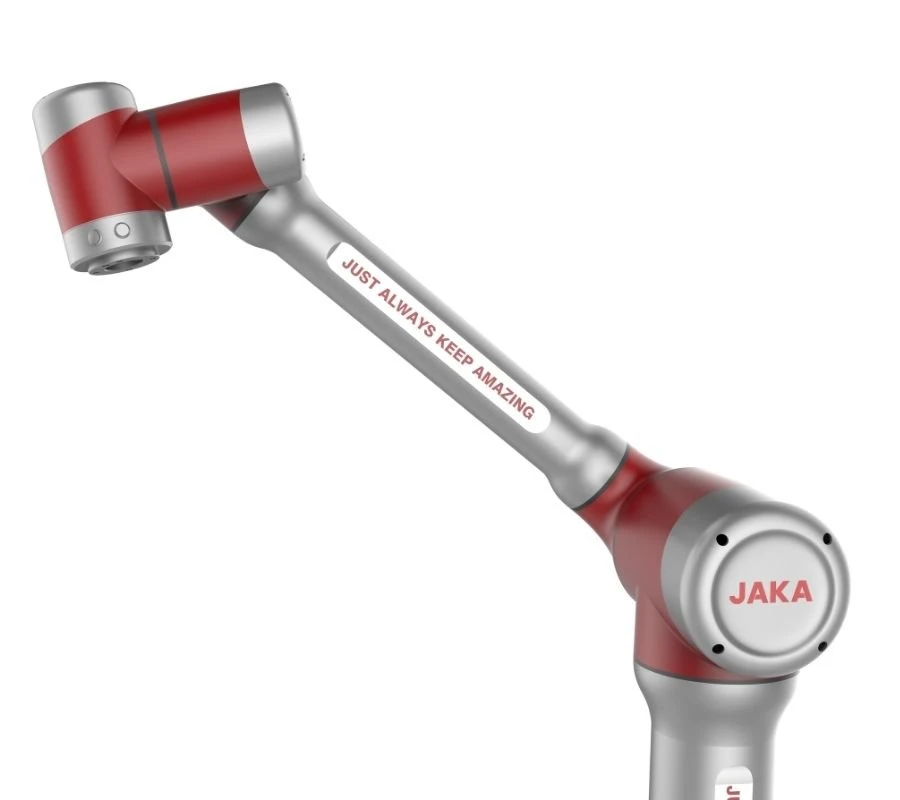

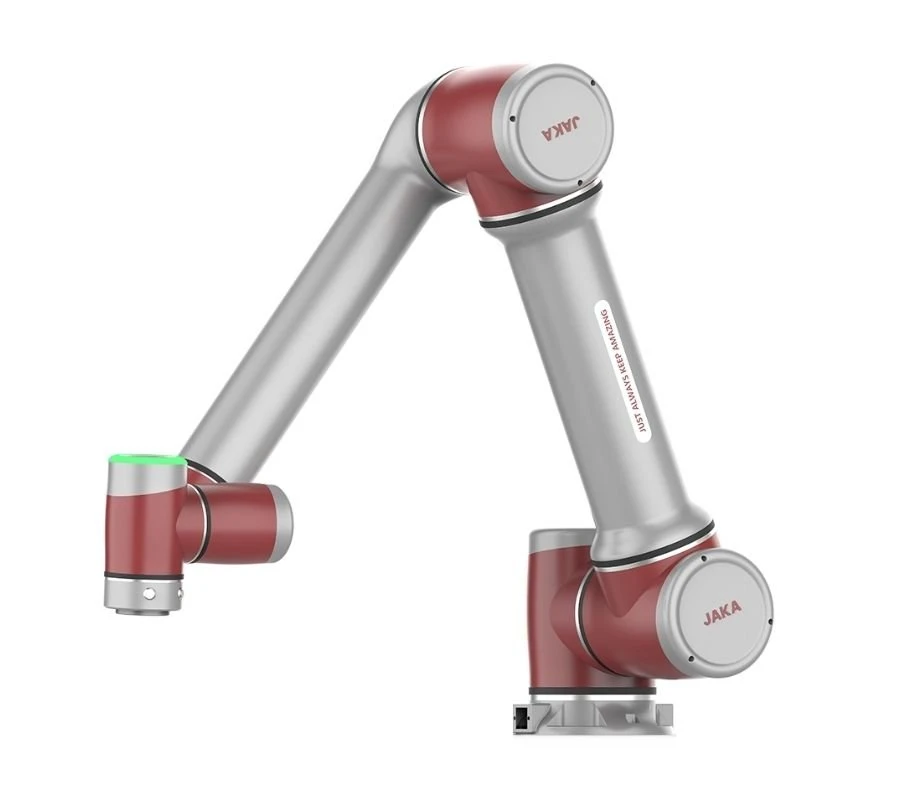

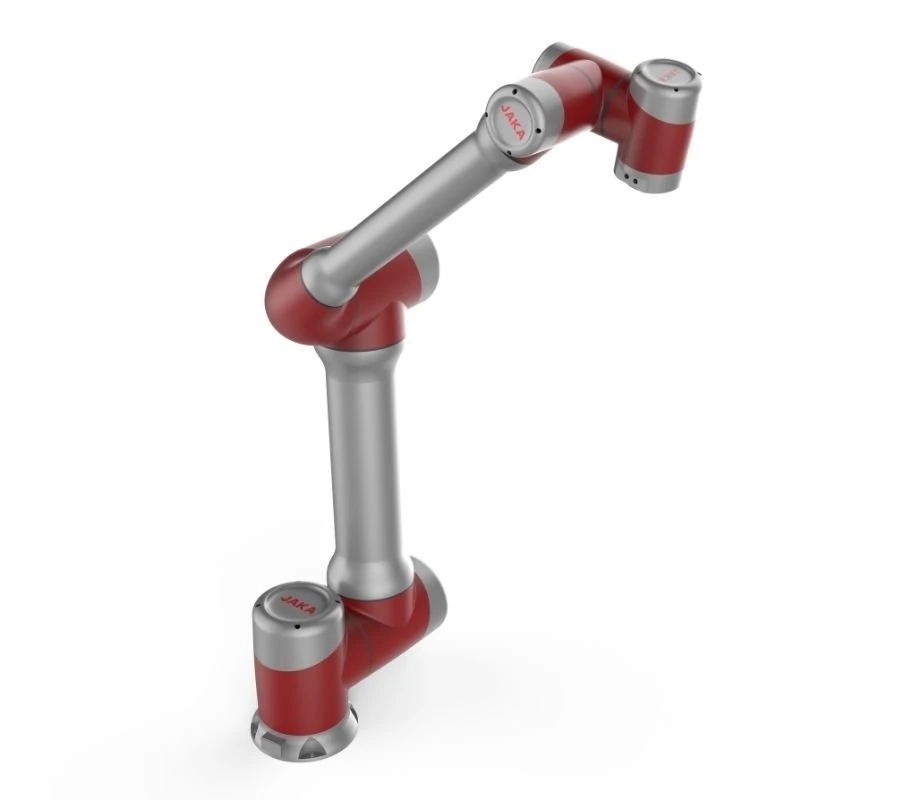

JAKA Zu 12

Category JAKA Zu

Payload 12kg | Reach 1327 mm

Product Features:

Heavier payload: Self-weight 41kg, 12kg payload, working radius up to 1327mm.
Flexible deployment: Easy to switch installation mode/location, lower requirements on deployment environment.
Function more: Replacing heavy physical handling work, filling more industry blank.

Recommended Markets:

Metal processing, Automotive industry, Injection molding, Pharmaceutical and chemical industry, etc.

Parameters and Layout

Payload	12kg
Weight（W cable)	41kg
Work radius	1327mm
Repeatability	±0.03mm
Axis	6
Programming	Graphical programming, free-drive
Teach pendant	MT（PAD/Mobile）APP
Collaborative operation	Accordance with GB 11291.1-2011
Robot	Work scope	Max speed
Joint 1	±360°	120°/s
Joint 2	-85°,+265°	120°/s
Joint 3	±175°	120°/s
Joint 4	-85°,+265°	180°/s
Joint 5	±360°	180°/s
Joint 6	±360°	180°/s
Max speed	/	3m/s
Rated power	500W
Temperature range	0-50°C
IP Specification	IP54
Installation	Installation at any angle

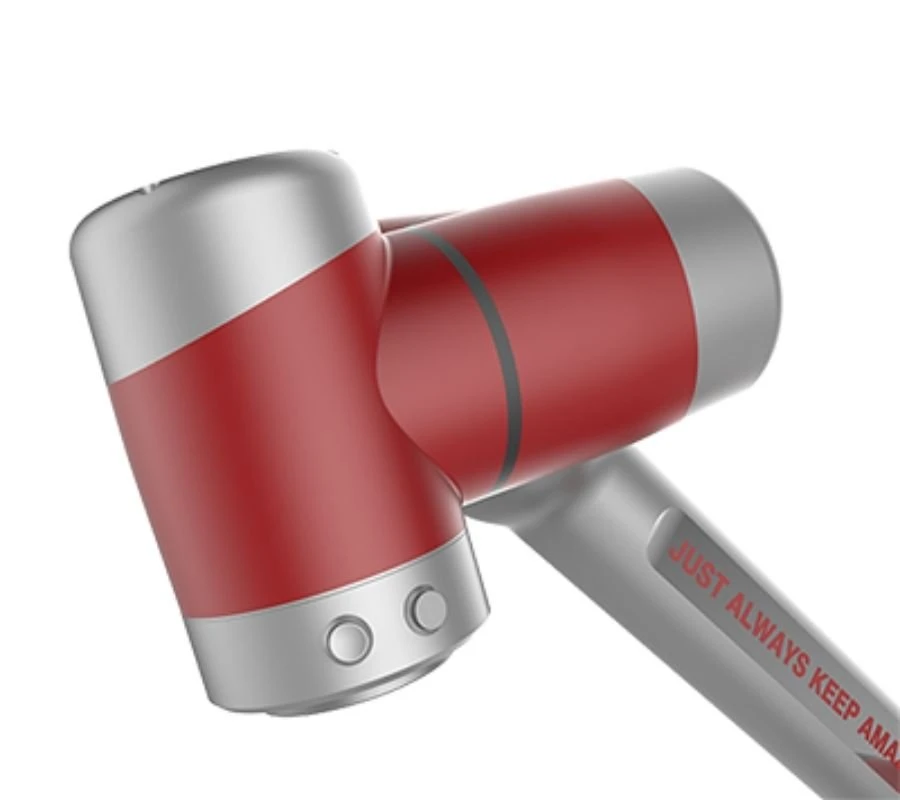

Tool I/O	Digital input 2, Digital output 2, Analog input 1
Tool I/O power	24V
Tool I/O size	M8
Materials	Aluminum, PC
base diameter	188mm
Cable length	6m
