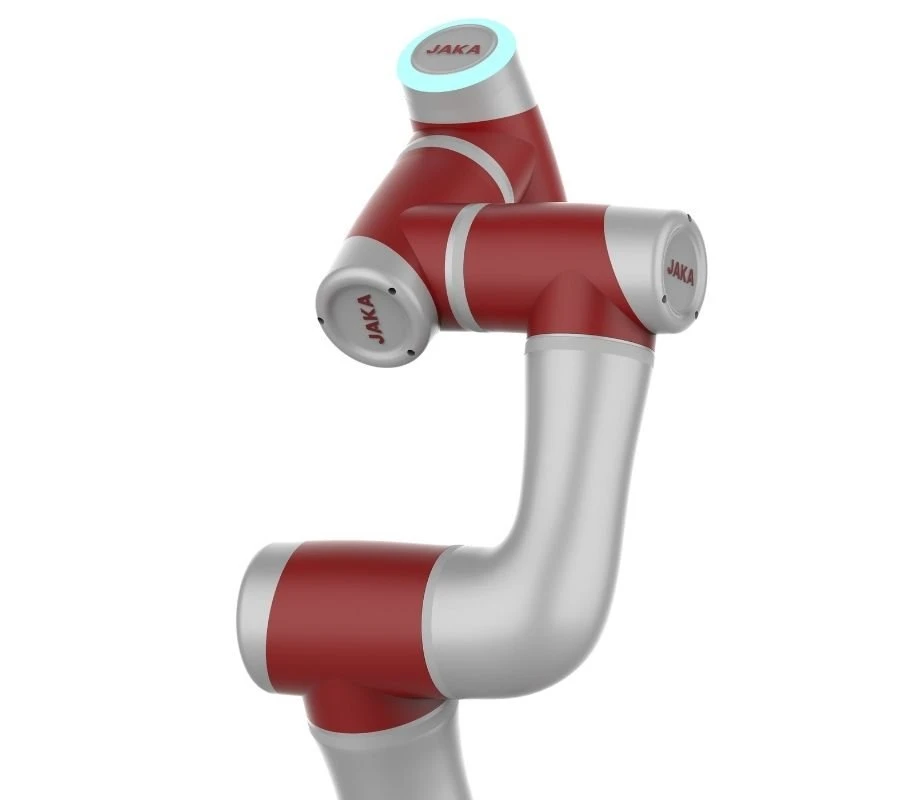

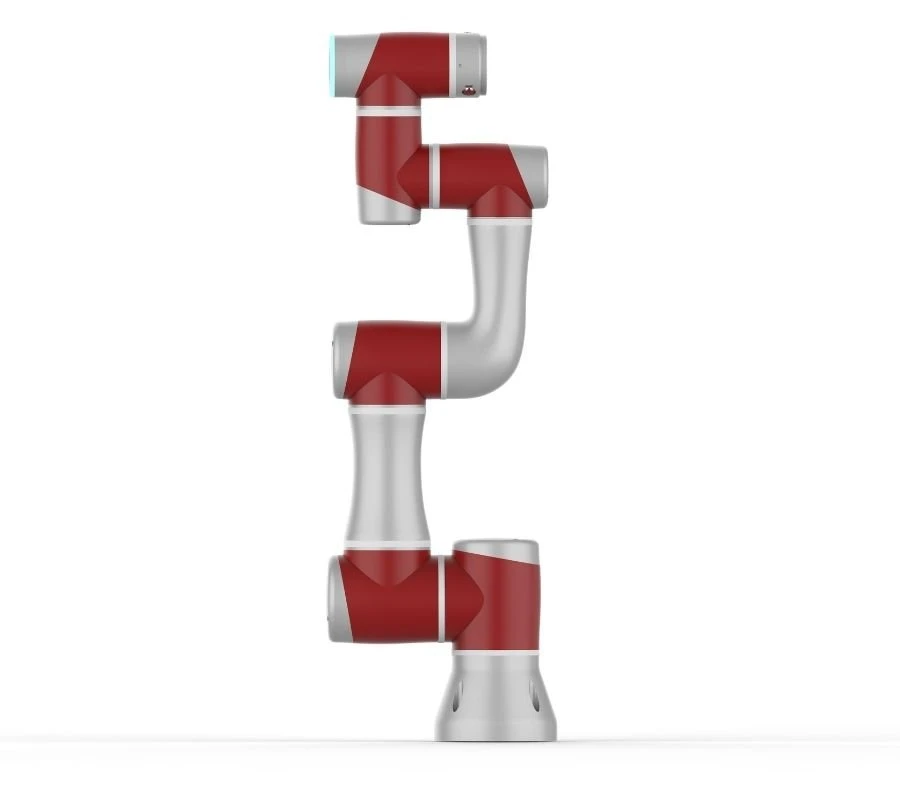

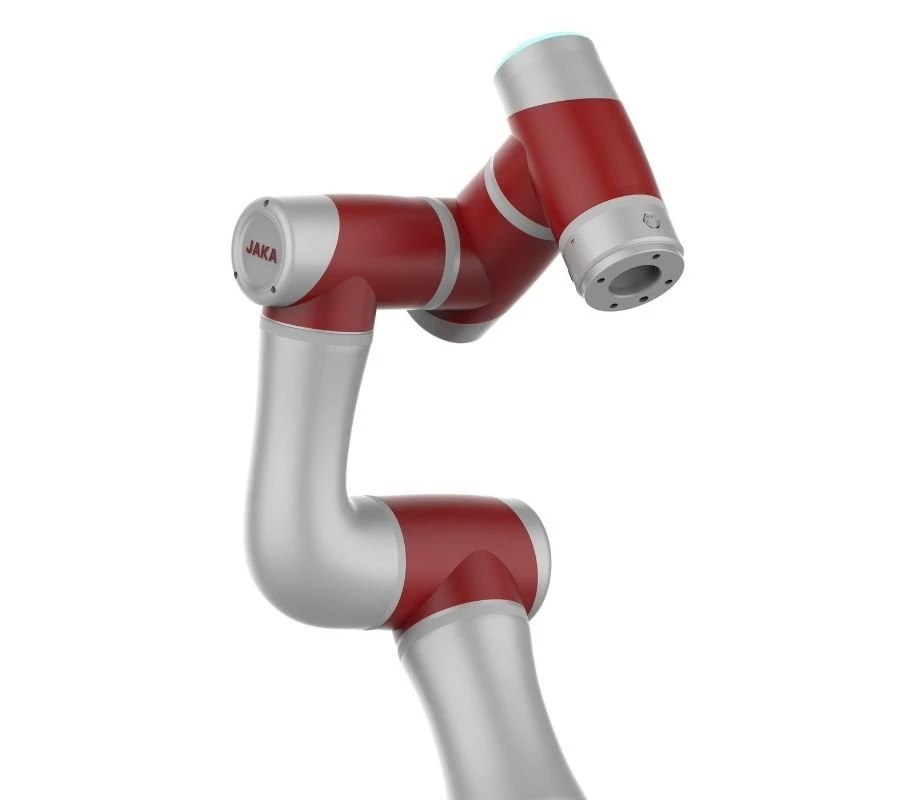

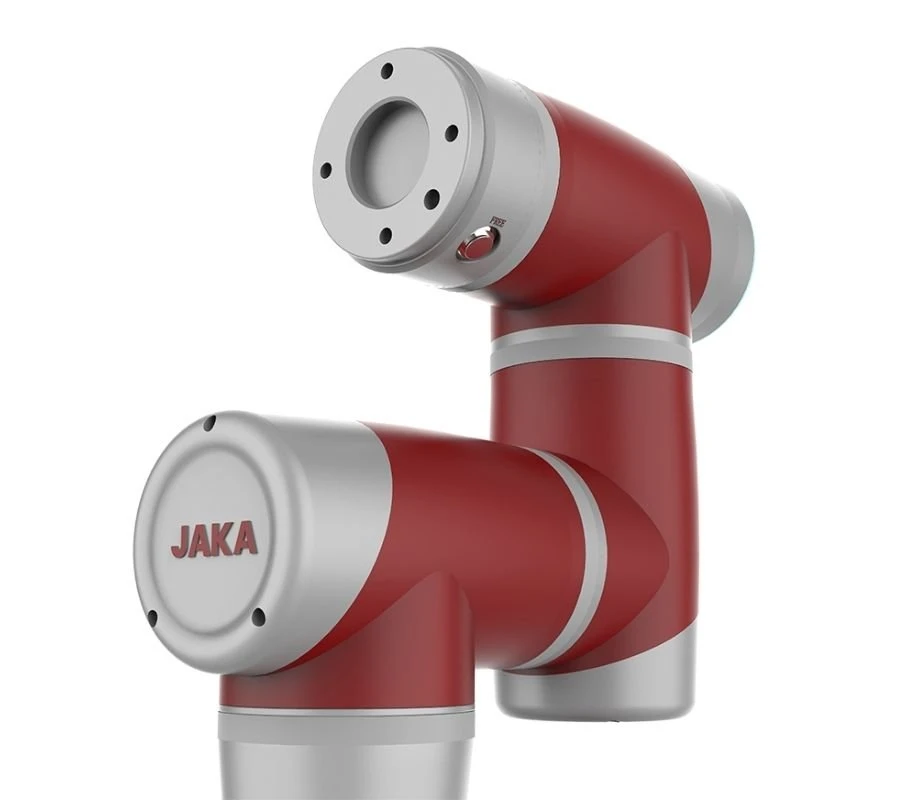

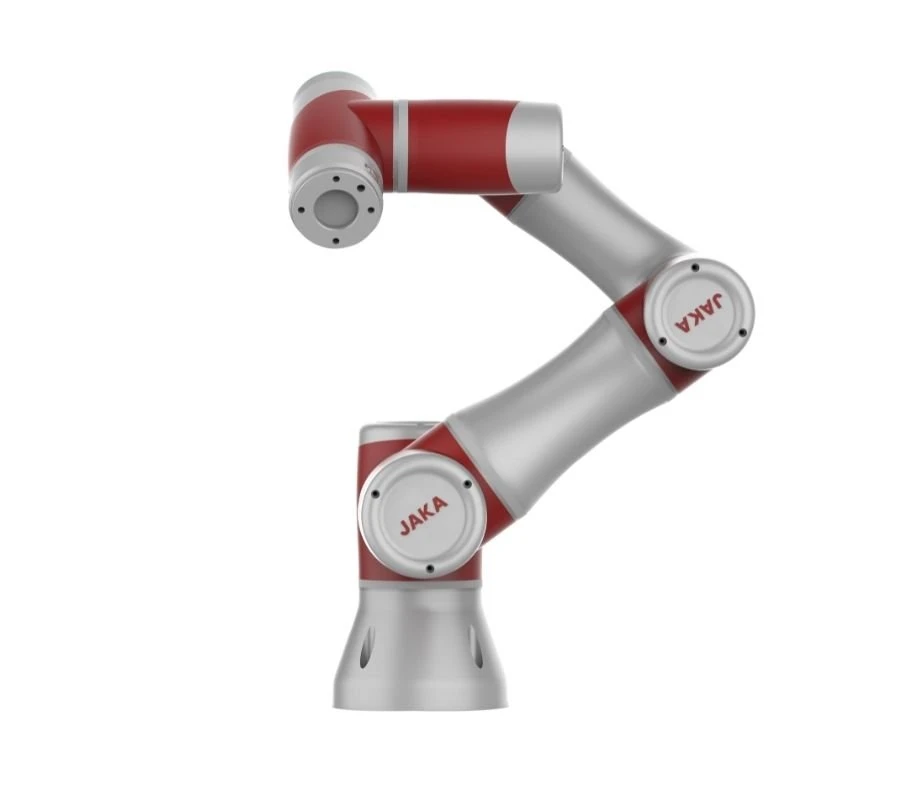

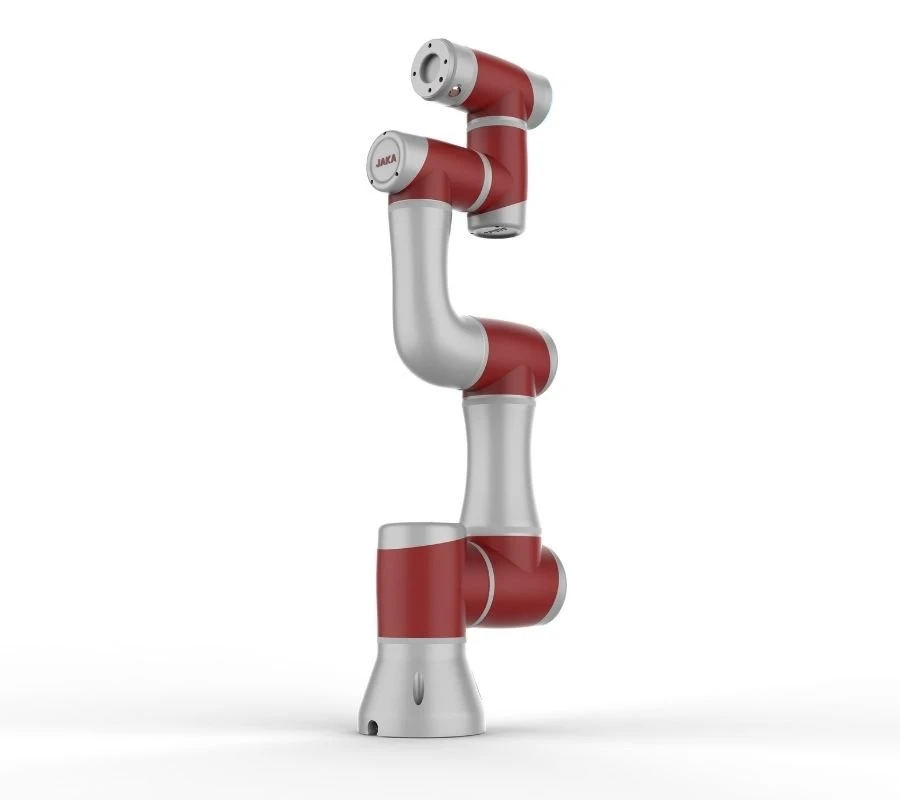

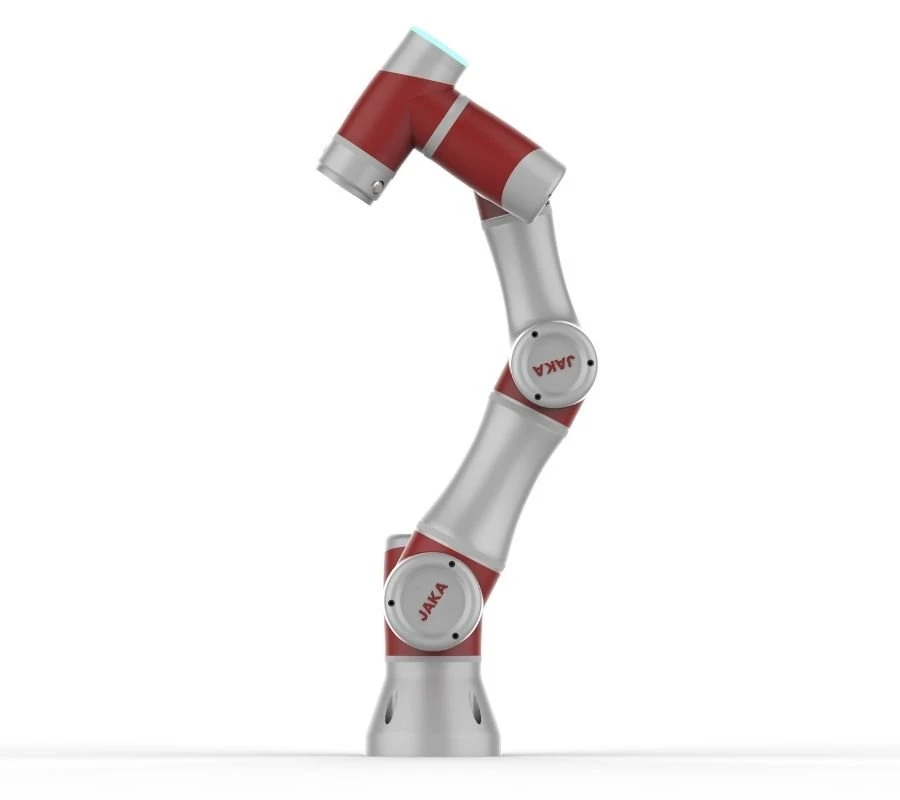

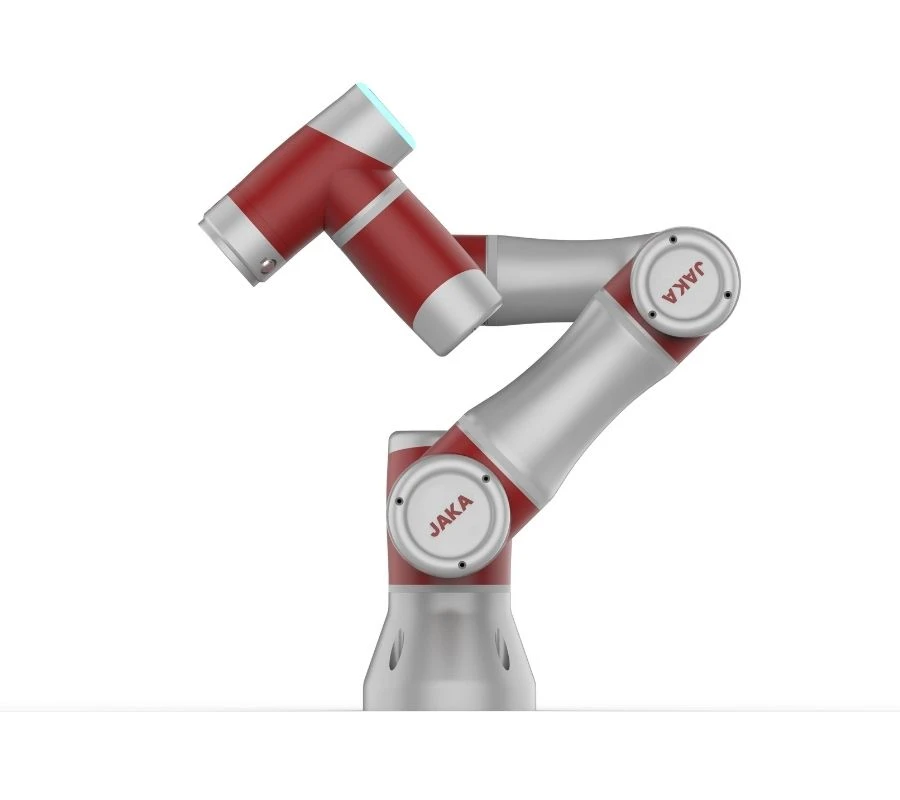

JAKA Zu 3

Category JAKA Zu

Payload 3 kg | Reach 626 mm

Product Features:

Lighter self-weight: Self-weight 12kg, payload 3kg, working radius up to 626mm.
More flexible and portable: Light weight design, higher efficiency, faster and more convenient customer deployment.
Higher precision: Able to adapt to tight space installation, flexible production line with high precision and density requirement.

Recommended Markets:

Parameters and Layout

Payload	3kg
Weight（W cable)	12kg
Work radius	626mm
Repeatability	±0.02mm
Axis	6
Programming	Graphical programming, free-drive
Teach pendant	MT（PAD/Mobile）APP
Collaborative operation	Accordance with GB 11291.1-2011
Robot	Work scope	Max speed
Joint 1	±360°	180°/s
Joint 2	-85°,+265°	180°/s
Joint 3	±175°	180°/s
Joint 4	-85°,+265°	220°/s
Joint 5	±360°	220°/s
Joint 6	±360°	220°/s
Max speed	/	1.5m/s
Rated power	150W
Temperature range	0-50°C
IP Specification	IP54
Installation	Installation at any angle
Tool I/O	Digital input 2 , Digital output 2, Analog input 1
Tool I/O power	24V
Tool I/O size	M8
Materials	Aluminum, PC
base diameter	129mm
Cable length	6m
