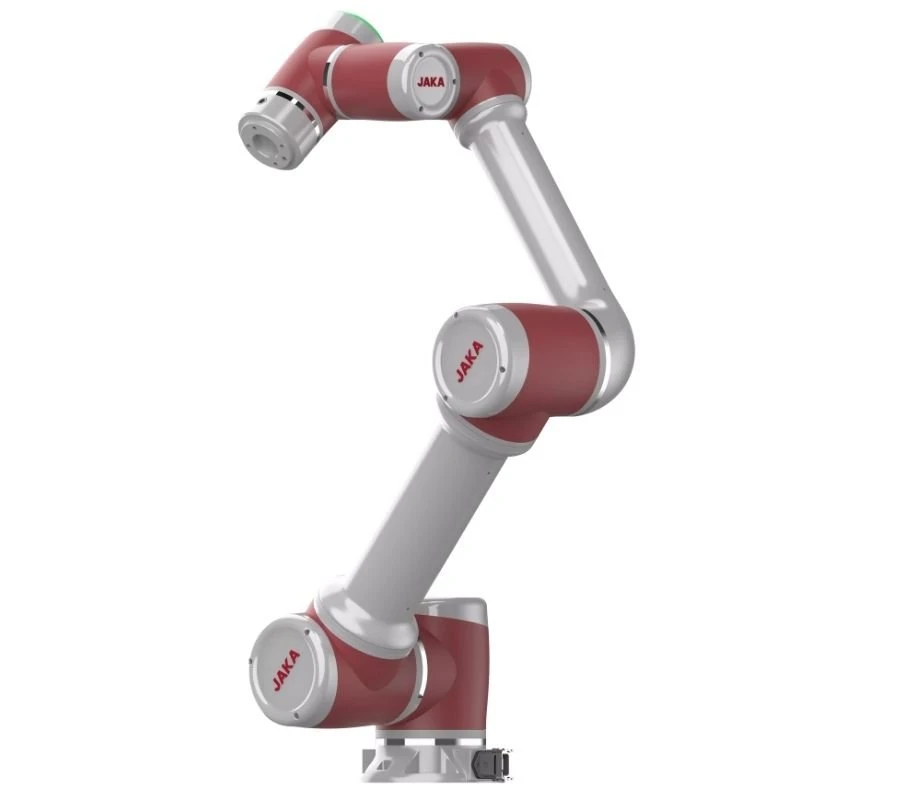

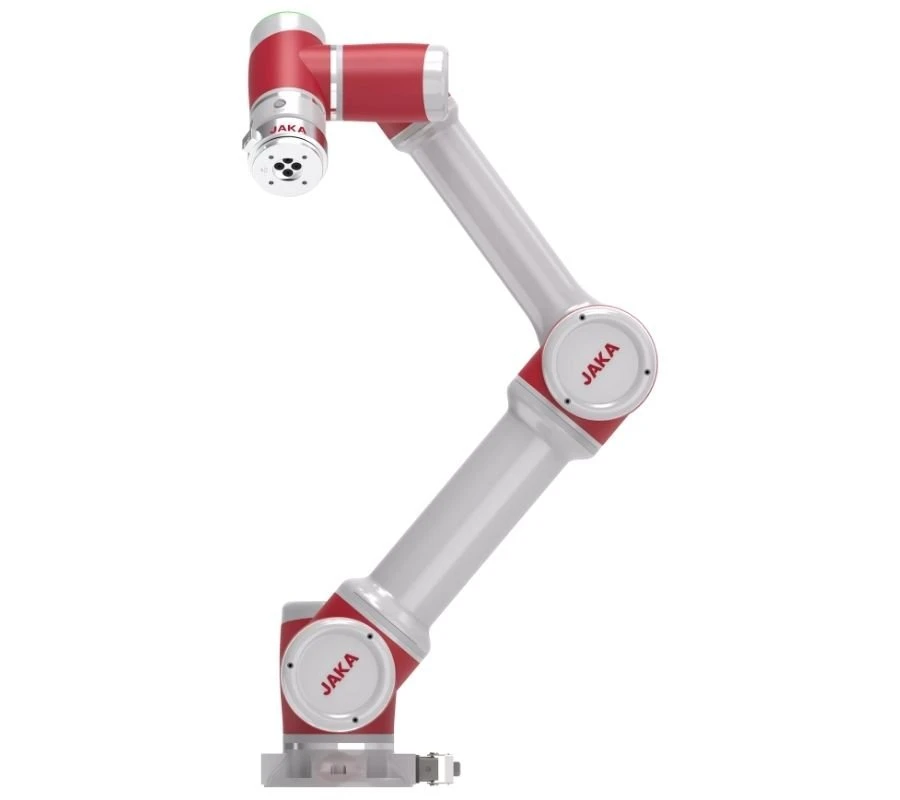

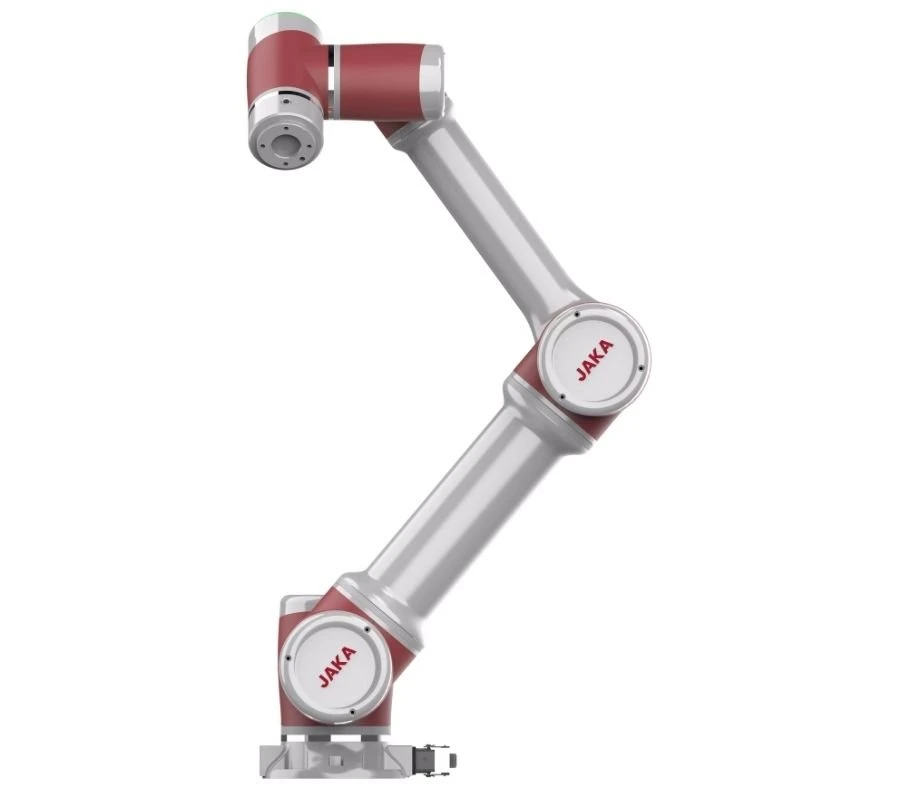

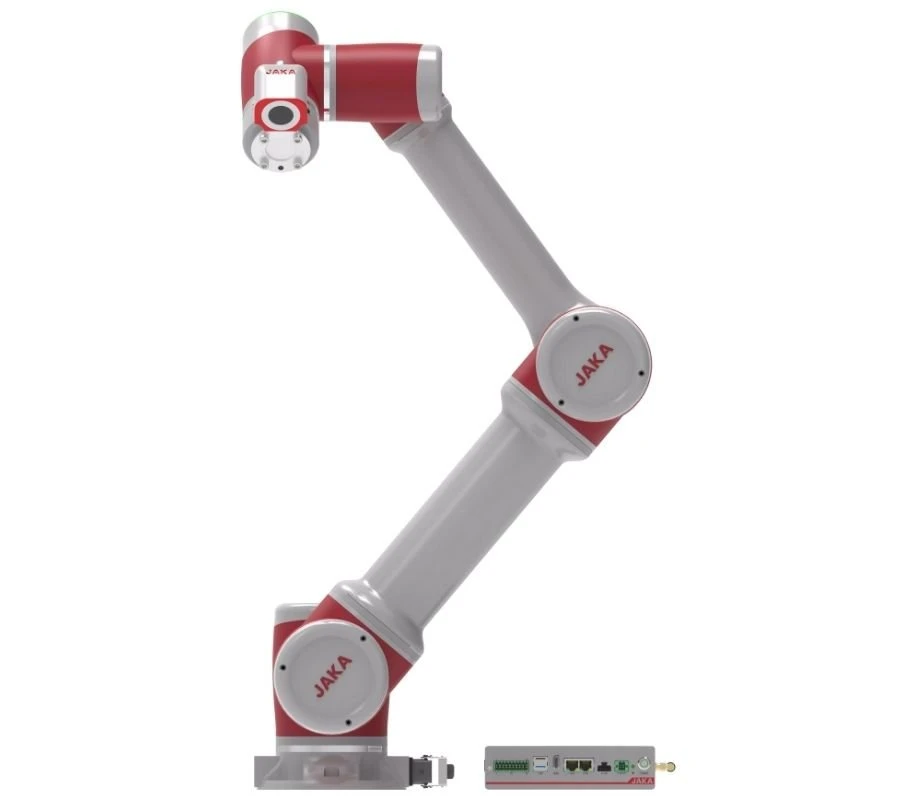

JAKA Zu 5

Category JAKA Zu

Payload 5 kg | Reach 954 mm

Product Features:

Compact and portable: Self-weight 23kg, payload 5kg, working radius up to 954mm.
High flexibility: Rapid deployment, saving staff working time, optimizing productivity.
Well adaptability: Meeting the requirements of lightweight operations such as loading and unloading, detection assembly, etc..

Recommended Markets:

Parameters and Layout

Payload	5kg
Weight（W cable）	23kg
Work radius	954mm
Repeatability	±0.02mm
Axis	6
Programming	Graphical programming, free-drive
Teach pendant	MT（PAD/Mobile）APP
Collaborative operation	Accordance with GB 11291.1-2011
Robot	Work scope	Max speed
Joint 1	±360°	180°/s
Joint 2	-85°,+265°	180°/s
Joint 3	±175°	180°/s
Joint 4	-85°,+265°	180°/s
Joint 5	±360°	180°/s
Joint 6	±360°	180°/s
Max speed	/	3m/s
Rated power	350W
Temperature range	0-50°C
IP Specification	IP54
Installation	Installation at any angle
Tool I/O	Digital input 2, Digital output 2, Analog input 1
Tool I/O power	24V
Tool I/O size	M8
Materials	Aluminum, PC
base diameter	158mm
Cable length	6m
